Overview

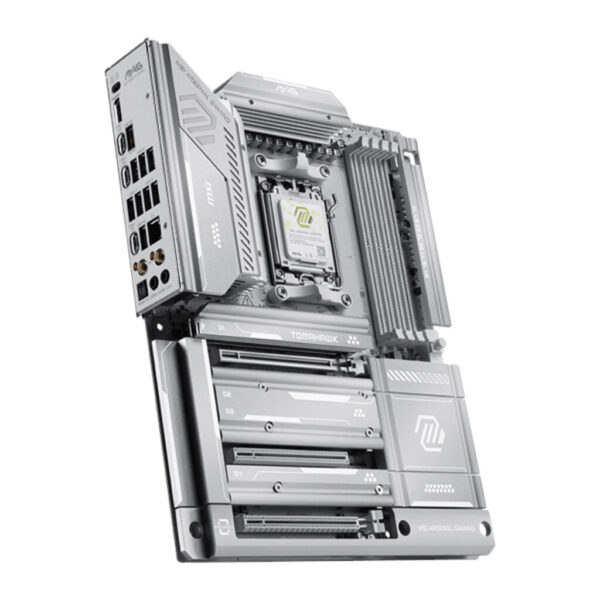

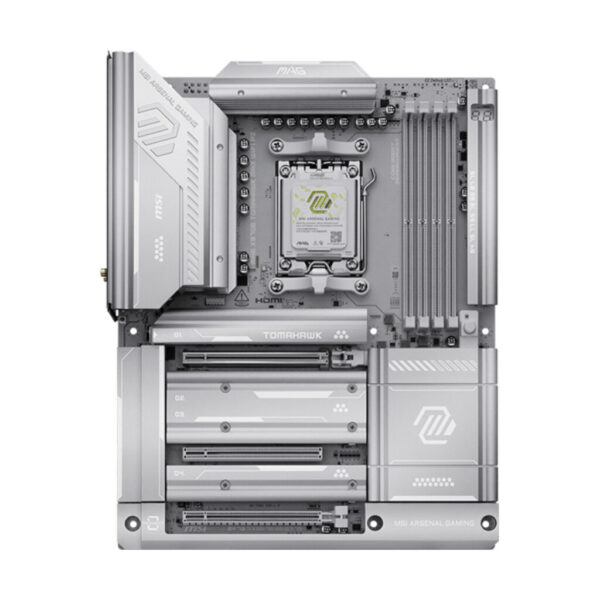

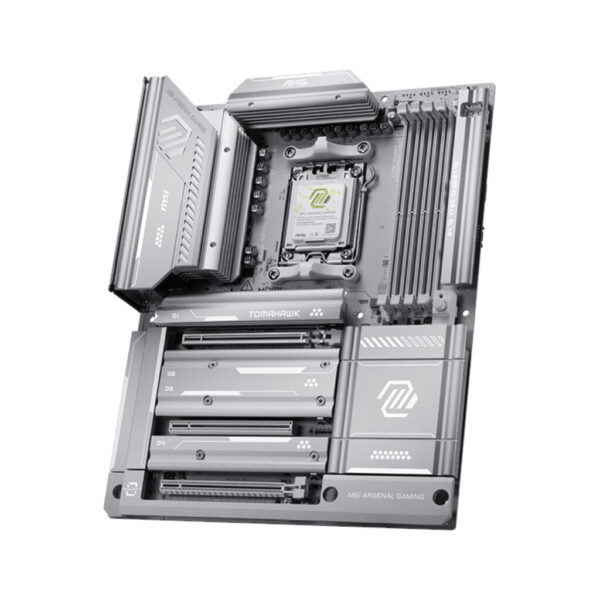

The MSI MAG X870E TOMAHAWK MAX WIFI PZ is engineered for the discerning South African builder who refuses to compromise on quality or performance. As an elite AM5 motherboard, it serves as the unyielding bedrock for high-performance computing, whether you are pushing the limits in competitive gaming or managing intensive professional creative workflows. Built with an 8-layer PCB featuring 2oz thickened copper, this board ensures superior signal integrity and heat dissipation, providing a robust platform for sustained high-performance operation.
Beyond its raw power, this motherboard is designed to evolve with your needs. It integrates the latest technological standards, including PCIe 5.0 and Wi-Fi 7, ensuring that your system remains at the cutting edge of connectivity for years to come. With its sophisticated silver aesthetic and intelligent EZ DIY features, the TOMAHAWK MAX WIFI PZ simplifies the building process while providing a professional, clean look for any chassis.
Key Features & Benefits
- Unmatched Power Delivery: Features a 14+2+1 Duet Rail Power System with dual 8-pin connectors, ensuring stable and clean power for the most demanding Ryzen 9000 series processors.
- Advanced Thermal Management: The Frozr Guard system, including an extended heatsink and 7W/mK MOSFET thermal pads, keeps critical components cool under extreme pressure.
- Effortless Assembly: EZ DIY features like the EZ PCIe Release and EZ M.2 Clip II eliminate the frustration of building, allowing for tool-less installation of key components.
- Next-Gen Connectivity: Equipped with ultra-fast USB4 and 5G LAN, alongside Wi-Fi 7 support, providing secure, stable, and high-speed data transmission for all your multimedia needs.
- Immersive Audio: Audio Boost 5 technology delivers studio-grade sound quality, isolating audio circuitry to provide a crystal-clear, immersive experience for gaming and content creation.
Performance & Best Use Cases
Designed for power users, this motherboard excels in environments where reliability and speed are paramount. The inclusion of Lightning Gen 5 x4 M.2 slots ensures that your storage drives operate at maximum potential, drastically reducing load times and accelerating data-heavy tasks. Whether you are rendering 8K video, compiling complex code, or competing in high-fidelity esports titles, this board ensures your hardware is never the bottleneck.
- Best For: High-end gaming builds and professional workstation environments.
- Use Case: Demanding creative software, 4K/8K media production, and competitive gaming.
- Practical Advantage: Rapid file transfers and reduced system latency via PCIe 5.0 and 5G LAN.
- Why Choose It: Exceptional build quality combined with future-proof standards like Wi-Fi 7 and USB4.
Connectivity, Cooling & Power
Connectivity is the hallmark of the X870E chipset, and this board delivers with an expansive array of USB ports, including high-speed USB4 and 20Gbps Type-C headers. Cooling is managed through a comprehensive ecosystem of fan headers and dedicated M.2 Shield Frozr II heatsinks, which prevent thermal throttling on high-speed NVMe drives. The power delivery system is reinforced by server-grade materials, ensuring that your CPU receives consistent, stable voltage regardless of the workload intensity.
Compu-Fi Expert Opinion
The MSI MAG X870E TOMAHAWK MAX WIFI PZ is a standout choice for any builder looking to maximize the potential of the AMD AM5 platform. It strikes a perfect balance between enthusiast-grade features and user-friendly design. The inclusion of a 3-year warranty adds a layer of security that makes this an easy recommendation for anyone investing in a long-term, high-performance PC build. It is a reliable, feature-rich, and aesthetically pleasing foundation that will serve you exceptionally well.
Detailed Technical Specifications
Technical Overview
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
SPECIFCATIONS:
- Chipset: AMD X870E
- CPU Support:
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Socket AM5
- Memory:
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
- Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6400+ MT/s
- Supports AMD POR Speed and JEDEC Speed
- Supports Memory Overclocking and AMD EXPO™
- Supports Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM, Clock Driver bypass mode only
- Onboard Graphics:
- 1x HDMI™
- Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
- 2x Type-C DisplayPort
- USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot:
- 3x PCI-E x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio:
- Realtek® ALC4080 Codec
- 7.1-Channel USB High Performance Audio
- Supports up to 32-bit/384kHz playback on front panel
- Supports S/PDIF output
- Storage:
- 4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
- M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G
- M.2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
- M2_2 slot
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID:
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

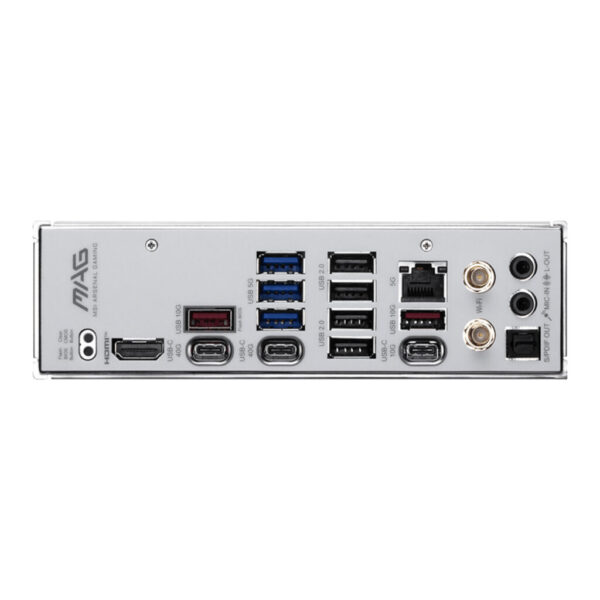

- USB:
- 4x USB 2.0 (Rear)
- 4x USB 2.0 (Front)
- 3x USB 5Gbps Type A (Rear)
- 4x USB 5Gbps Type A (Front)
- 2x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 20Gbps Type C (Front)
- 2x USB 40Gbps Type C (Rear)
- LAN: 1x Realtek® 8126 5G LAN
- Wireless LAN & Bluetooth:
- Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
- Internal IO:
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x Power Connector(PCIE_PWR 8pin)
- 1x CPU Fan
- 1x Combo Fan (Pump_Sys Fan)
- 6x System Fan
- 1x EZ Conn-header (JAF_2)
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 2x Direct OC Jumper (JBCLK)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 20Gbps Type C ports
- LED Feature:
- 4x EZ Debug LED
- 1x EZ Digit Debug LED
- 1x EZ Memory Detection LED
- Operating System: Support for Windows® 11 64-bit
- Form Factor: ATX
- Colour: Silver

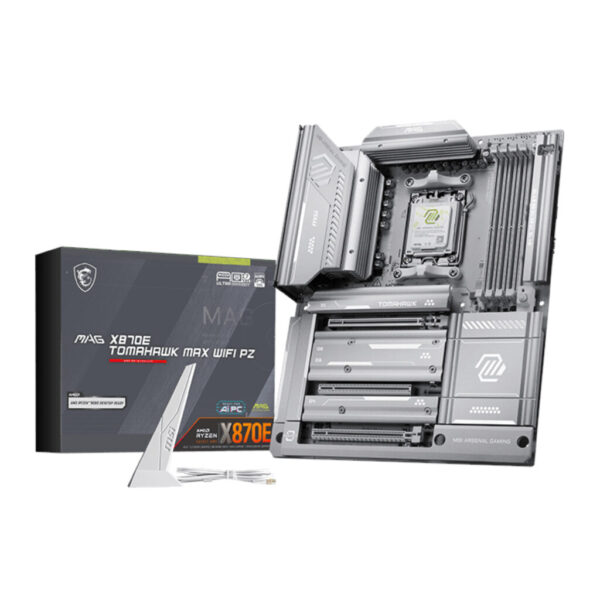

WHAT’S IN THE BOX:
- MSI MAG X870E TOMAHAWK MAX WIFI PZ AM5 ATX Motherboard – Silver x1
- USB Drive x1
- SATA Cables x2
- EZ M.2 Clip II Remover x1
- EZ M.2 Clip II
- M.2 Plate Screw x1
- EZ Wi-Fi Antenna x1
- 1 to 3 EZ Conn-cable (V2)
- EZ Front Panel Cable x1
Why MSI?
MSI is a global leader in gaming hardware, renowned for its commitment to innovation, performance, and reliability. As a trusted brand for PC builders in South Africa and worldwide, MSI empowers users with cutting-edge technology that delivers tangible advantages in gaming, creativity, and productivity. Choose MSI for an MSI AM5 motherboard that provides a stable, powerful, and future-ready foundation for your ultimate PC build.
36-Month Warranty
Official Compu-Fi Stock
