Overview

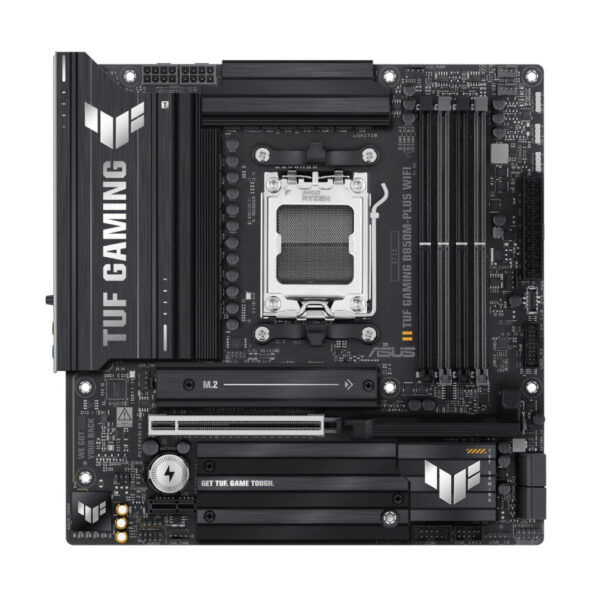

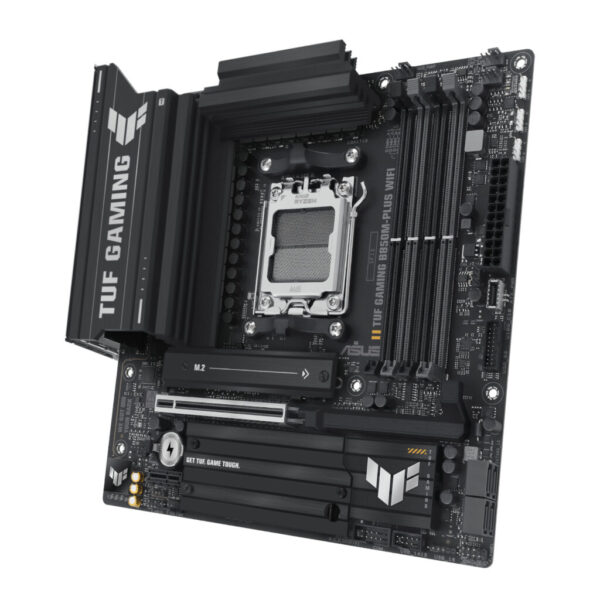

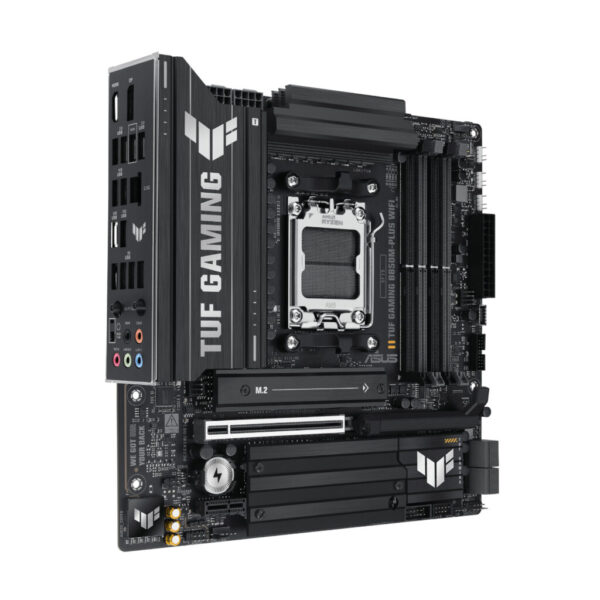

The ASUS TUF Gaming B850M-PLUS WIFI motherboard is engineered for enthusiasts who demand a blend of resilience and high-speed performance. Built upon the robust AMD B850 chipset, this board provides full support for the latest AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring your system remains at the forefront of computing technology. Its Micro ATX form factor makes it an ideal choice for compact gaming rigs that do not compromise on power or expandability.
Designed with the TUF Gaming philosophy, every component is selected for its longevity and stability. From the military-grade chokes to the enhanced thermal solutions, this motherboard is built to withstand the rigors of intense gaming sessions and heavy multitasking. With a verified 36-month warranty, you can build your dream machine with the confidence that your hardware is protected by industry-leading support.
Key Features & Benefits
- Next-Gen Data Speeds: Integrated PCIe 5.0 support ensures maximum bandwidth for future-proof graphics cards and ultra-fast NVMe storage.
- EZ DIY Innovation: Features like the PCIe Slot Q-Release and M.2 Q-Latch make component installation and upgrades completely tool-free and frustration-free.
- Advanced Wireless Connectivity: Equipped with Wi-Fi 6E, this board provides ultra-low latency and high-speed wireless networking for competitive online gaming.
- High-Fidelity Audio: The Realtek ALC1220P codec, combined with premium audio capacitors and a unique de-pop circuit, delivers immersive, studio-grade sound.
- Comprehensive BIOS Control: The dedicated BIOS Flashback button allows for easy updates even without a CPU or memory installed, ensuring maximum compatibility.
Performance & Best Use Cases
This motherboard is optimized for users who require a high-performance platform that handles modern workloads with ease. Whether you are pushing high frame rates in the latest AAA titles or rendering complex 3D projects, the B850M-PLUS provides the stable power delivery and memory bandwidth necessary to keep your system performing at its peak.
- Best For: High-performance gaming and content creation builds.
- Use Case: Compact Micro ATX workstations and enthusiast gaming PCs.
- Practical Advantage: Rapid file transfers and reduced loading times via PCIe 5.0 and high-speed USB 20Gbps ports.
- Why Choose It: It offers a perfect balance of premium features, ease of assembly, and long-term reliability.
Connectivity, Cooling & Power
Thermal management is a priority, with integrated cooling solutions that keep critical components running within safe parameters under load. The board features a versatile array of connectivity options, including a 20Gbps USB Type-C port for fast peripheral interaction and a Realtek 2.5Gb Ethernet port for stable, high-speed wired networking. The robust power design ensures that even the most demanding Ryzen processors receive consistent, clean electricity for stable overclocking and sustained performance.
Compu-Fi Expert Opinion
The ASUS TUF Gaming B850M-PLUS WIFI is an exceptional choice for the modern builder. Its focus on “EZ DIY” features like the Q-Antenna and Q-LED diagnostics significantly lowers the barrier to entry for high-end builds, while the inclusion of PCIe 5.0 ensures the board won’t become obsolete as newer components hit the market. We highly recommend this motherboard for anyone looking to build a reliable, high-speed system that looks as good as it performs.
Detailed Technical Specifications
Technical Overview
FEATURES:
- AMD B850 Chipset
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC) 256GB max capacity
- Ultra-fast Wi-Fi 6E connectivity with Realtek 2.5G Ethernet LAN
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 support
- 20Gbps USB Type-C connectivity support
- EZ PC DIY: PCIe slot Q-Release, Q-Antenna, M.2 Q-Latch, Q-LED and BIOS Flashback button for easy usage
- Aura Sync support for full RGB lighting control
SPECIFICATIONS:
- CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Chipset: AMD B850 Chipset
- Memory:
- 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Graphics:
- 1 x HDMI™ port**
- 1 x DisplayPort***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots:
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B850 Chipset
- 1 x PCIe 4.0 x1 slot
- *Please check Asus support or download center for supported peripherals.
- Storage:
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
- AMD B850 Chipset
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
- RAID:
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
- Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
- Wireless & Bluetooth:
- Wi-Fi 6E
- 2×2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth® v5.3**
- * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
- ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
- Rear USB (Total 12 ports):
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 6 ports):
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 3 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A.
- Audio:
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
- Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

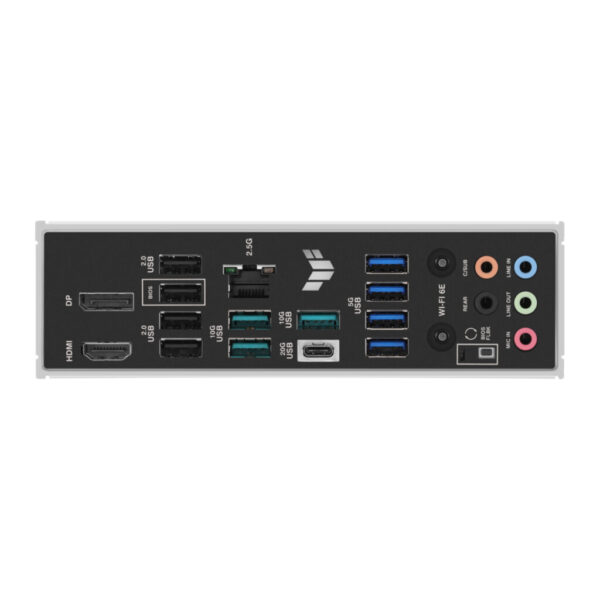

- Back Panel I/O Ports:
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
- Operating System: Windows 11, Windows 10 64-bit
- Form Factor: Micro ATX
WHAT’S IN THE BOX:

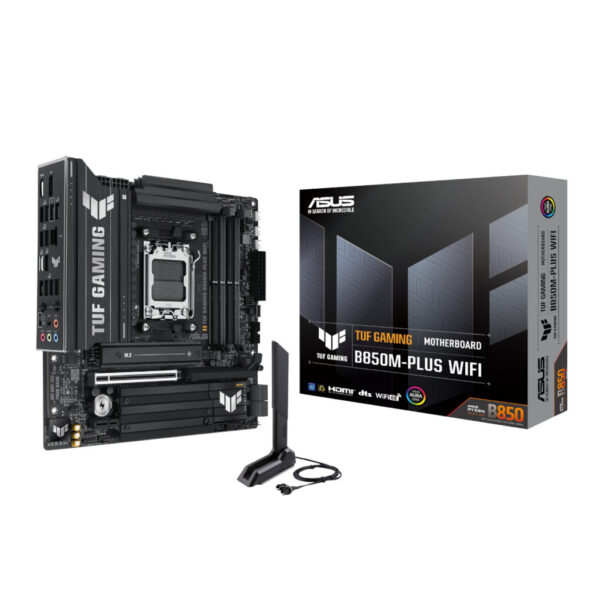

- Asus TUF Gaming B850M-PLUS WIFI AM5 Micro ATX Gaming Motherboard – Black x1
Why Asus?
ASUS has earned a trusted reputation in South Africa for delivering high-quality, innovative motherboards. The ASUS TUF Gaming series, including this ASUS AM5 Motherboard, is specifically designed for reliability and performance, ensuring gamers and PC enthusiasts receive a product that meets the demands of modern gaming and content creation. With advanced features, robust construction, and excellent support, ASUS motherboards provide a solid foundation for any high-performance PC build.
36-Month Warranty
Official Compu-Fi Stock
