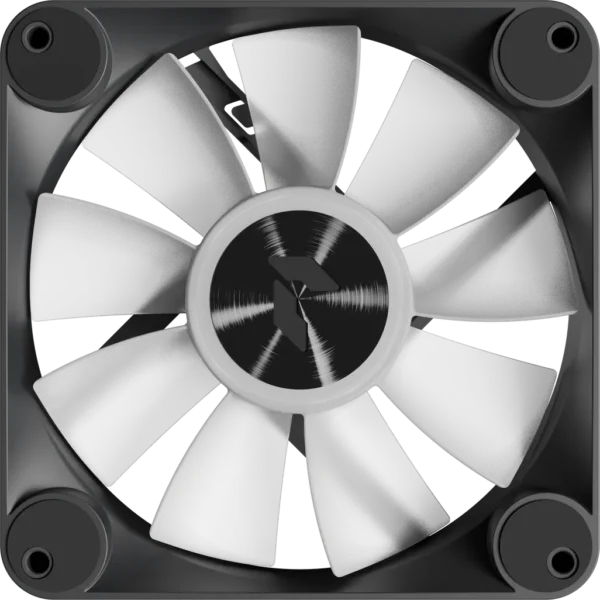

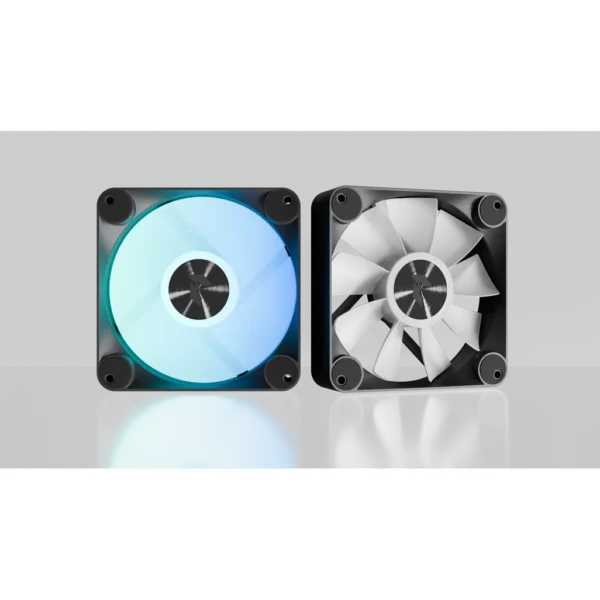

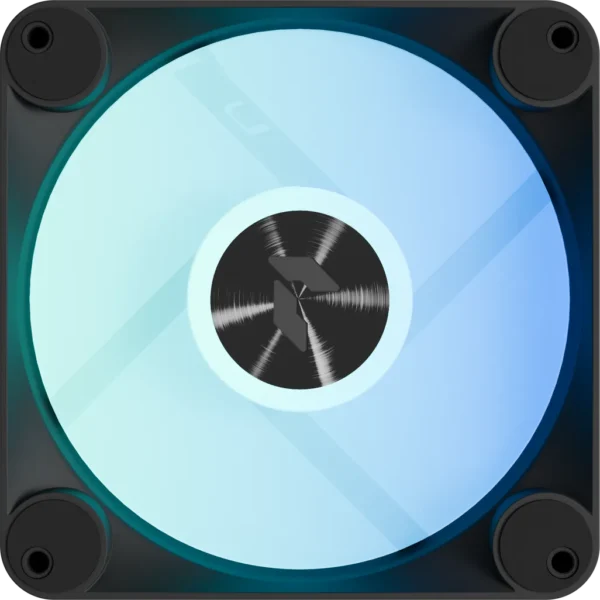

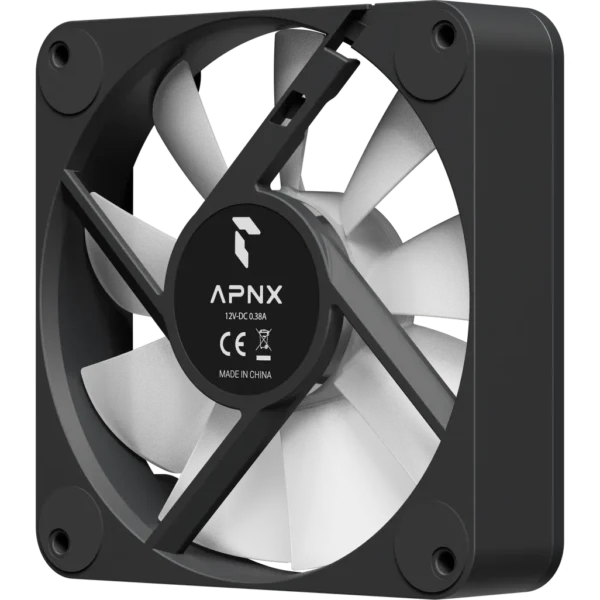

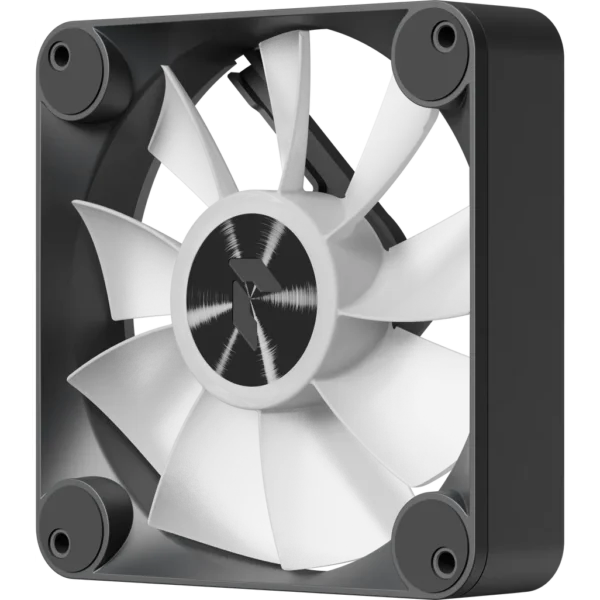

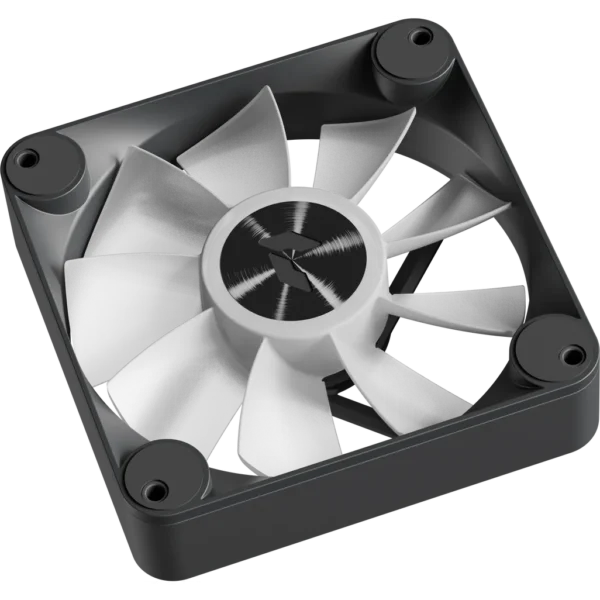

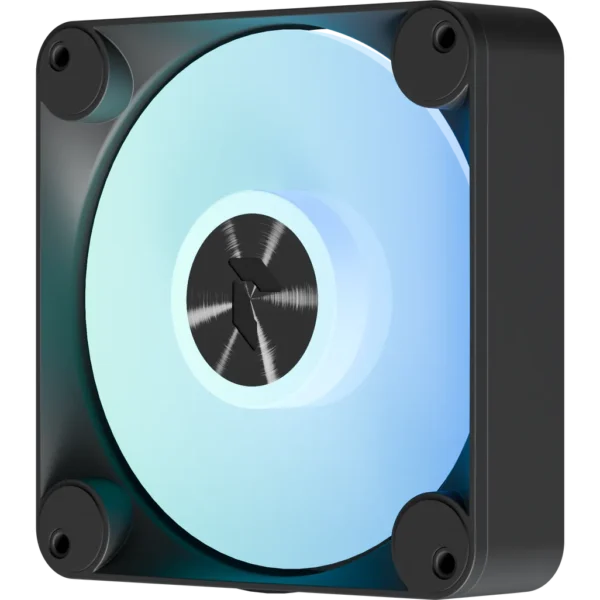

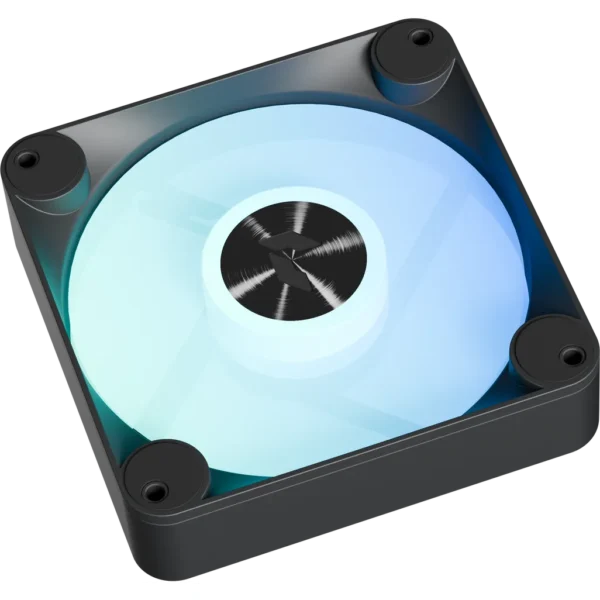

Aerocool APNX FP1-R | 120mm | Reverse Blade | ARGB PWM

Overview

The Aerocool APNX FP1-R 120mm PWM ARGB fan represents a sophisticated leap in case cooling technology. Specifically engineered with a reverse blade design, this fan solves the age-old dilemma of choosing between optimal intake airflow and aesthetic consistency. By pulling air into the chassis while keeping the refined front-facing ARGB lighting visible, it ensures your system remains both cool and visually stunning.

Beyond its striking appearance, the FP1-R features a robust 30mm frame thickness. This design choice provides a significant 30–50% performance increase over traditional 25mm fans, allowing for larger, more efficient blades that generate higher static pressure. With a 2-year local warranty included, this fan is a reliable foundation for any high-performance gaming rig or workstation.

Key Features & Benefits

• Reverse Blade Intake: Specifically optimized to pull air into your case while showcasing the premium ARGB lighting effects.
• Increased Thickness: The 30mm frame depth allows for enhanced airflow and static pressure, outperforming standard slim-profile fans.
• Hydraulic Bearing: Engineered for longevity, the fan boasts a Mean Time Between Failures (MTBF) of 60,000 hours.
• Vibration Dampening: Integrated extra-thick rubber pads minimize resonance, ensuring silent operation even at higher speeds.
• Precision PWM Control: The 4-pin PWM connector allows for dynamic speed adjustment between 500 and 1600 RPM to balance noise and performance.

Performance & Best Use Cases

The APNX FP1-R is designed for users who refuse to compromise on thermal management or system presentation. Its high static pressure capabilities make it an excellent choice for intake positions, particularly in cases with restrictive front panels or dust filters.

• Best For: Enthusiast-grade PC builds requiring high-airflow intake.
• Use Case: Front or bottom case mounting for optimal intake cooling.
• Practical Advantage: Maintains a uniform look across all fans by keeping the attractive side facing outward.
• Why Choose It: Combines industrial-grade cooling performance with high-end ARGB aesthetics.

Connectivity, Cooling & Power

Installation is streamlined through a dual-connector setup, featuring a standard 4-pin PWM header for precise fan speed management and a 3-pin 5V ARGB header for seamless motherboard lighting synchronization. Operating at a rated current of 0.4 A and consuming 4.8 W, these fans are highly efficient, allowing for multiple units to be daisy-chained without exceeding standard motherboard header limits.

Compu-Fi Expert Opinion

The Aerocool APNX FP1-R is a masterclass in functional design. We highly recommend this fan for users who are tired of ‘ugly’ intake fans that force them to show the rear motor hub to get proper airflow. The 30mm thickness is a noticeable upgrade in build quality, providing a substantial feel and improved thermal headroom that justifies its place in any premium Compu-Fi build.
