Detailed Features and Key Technologies
The RTX 5070 is a high-tier offering based on the new NVIDIA Blackwell architecture, designed to deliver substantial increases in rendering speed, Ray Tracing, and AI acceleration.
Key Technologies
- NVIDIA Blackwell Architecture: The foundation of the card, providing superior power efficiency and significant generational performance leaps, particularly in core processing and RT capabilities.
- Massive 12GB GDDR7 Memory: The increase to 12GB of ultra-fast GDDR7 memory (at 28 Gbps) on a 192-bit bus is critical for high-resolution textures and data demands in modern games and 4K content creation. This substantial VRAM ensures future-proofing and smoother performance at 1440p and 4K.
- DLSS 4 with Frame Generation: This AI-accelerated technology is key to enabling smooth 4K gameplay. DLSS 4 generates new, high-quality frames using dedicated Tensor Cores, substantially boosting frame rates and providing a superior visual experience.
- SFF-Ready Enthusiast Card: The SHADOW 2X OC design is relatively compact, making it suitable for high-performance Small Form Factor (SFF) PC builds where case space is limited, without compromising on the power needed for demanding games.
- PCI Express Gen 5: Utilizing a PCI Express Gen 5 interface, the card ensures maximum bandwidth and is ready for the fastest motherboards, though it remains backward compatible with previous generations.
Cooling and Design (SHADOW 2X OC)
The SHADOW 2X OC cooling system is optimized to manage the card’s 250W power consumption within a dual-fan form factor, emphasizing low noise and high thermal transfer.

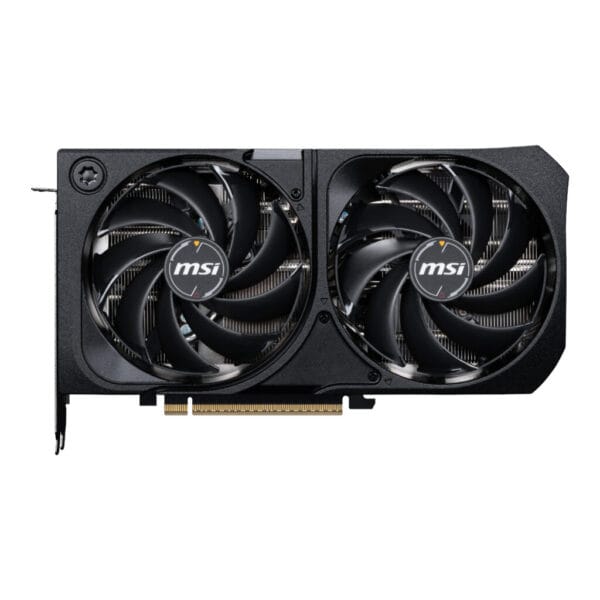

- TORX Fan 5.0: This advanced fan design uses fan blades linked by ring arcs, which stabilizes the airflow and maintains high pressure, resulting in an estimated 23% increase in airflow compared to previous generations for efficient cooling.
- Nickel-plated Copper Baseplate & Core Pipes: Heat is swiftly captured by the nickel-plated copper baseplate, which maximizes contact with the GPU die and memory modules. This heat is then transferred rapidly to the heatsink via Core Pipes that feature a square design for optimal thermal management.

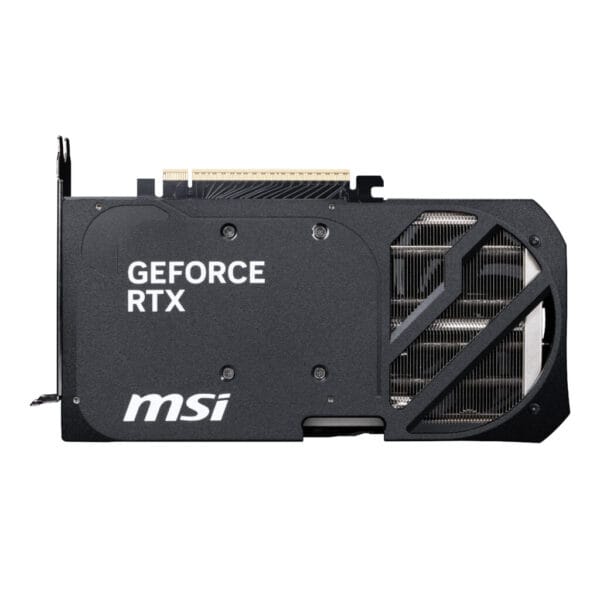

- Reinforcing Backplate: The backplate provides essential structural durability and features an airflow vent that allows exhaust air to pass through efficiently, further aiding in thermal regulation, especially important in compact cases.
Gaming Performance
The RTX 5070 is positioned perfectly as a powerful 1440p high-refresh-rate card and an excellent entry point into uncompromised 4K gaming.
| Resolution | Recommended Settings | Estimated Performance (DLSS 4 On) |
| 1080p (FHD) | Max/Ultra | Exceptional (160+ FPS). The card will easily push competitive frame rates (160Hz+) in all titles. This is ideal for maximizing very high-refresh-rate monitors. |
| 1440p (2K) | Max/High | Elite (100-144+ FPS). This is the sweet spot. The 12GB of GDDR7 and 6144 CUDA Cores ensure fluid, high-refresh-rate gaming with maxed-out visual settings, even with demanding Ray Tracing enabled via DLSS 4. |
| 4K (UHD) | High/DLSS Balanced | Excellent (60-90+ FPS). This card is highly capable at 4K. By utilizing DLSS 4 Quality or Balanced mode, it can comfortably achieve and maintain smooth, high-fidelity 4K gameplay in most AAA titles. |
Specifications
| Component | Detail |
| Graphics Processing Unit | NVIDIA GeForce RTX 5070 |
| Architecture | NVIDIA Blackwell |
| Interface | PCI Express® Gen 5 |
| CUDA Cores | 6144 Units |
| Boost Clock (Max) | 2557 MHz (MSI Center) |
| Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 192-bit |
| Power Consumption | 250W |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 650W |

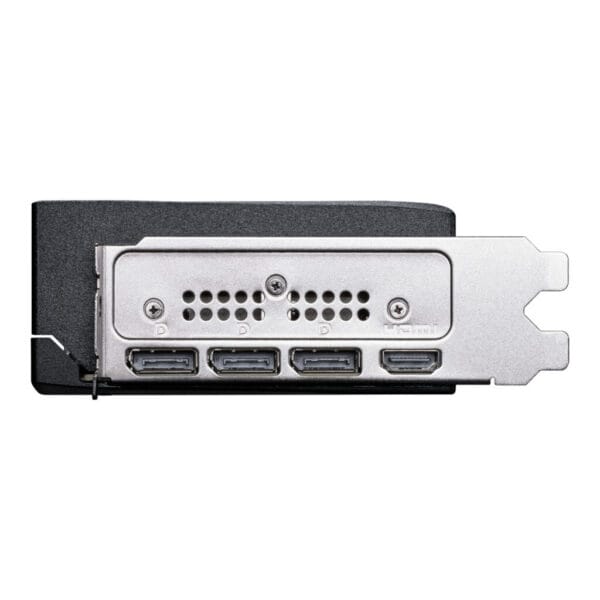

| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 (8K) |
| Dimensions | 23.1 x 12.6 x 5.0 cm |
| Warranty | 36 Months |
The MSI RTX 5070 SHADOW 2X OC is a fantastic choice for building a powerful 1440p or 4K rig, especially if you need a card that fits into a smaller case.
