Detailed Features and Key Technologies
The RTX 5060 Ti is built on the high-efficiency NVIDIA Ada Lovelace architecture, offering a significant step up in core count and memory speed over previous generations, making it a powerful mid-to-high-end GPU.
Key Technologies
- GDDR7 Memory: The inclusion of 8GB GDDR7 memory operating at a blazing 28 Gbps is a monumental upgrade. This memory provides the necessary 448 GB/s memory bandwidth crucial for handling the massive data demands of 1440p resolution gaming, complex Ray Tracing, and large texture assets in content creation.
- DLSS 4 with Frame Generation: This next-generation AI technology uses dedicated Tensor Cores to upscale images and generate entirely new frames, drastically boosting frame rates and improving visual fluidity, especially at 1440p and higher resolutions.
- Real-Time Ray Tracing: With 36 dedicated Ray Tracing (RT) Cores, the card accelerates the rendering of lifelike lighting, shadows, and reflections, enabling realistic visuals in supported games without crippling performance.
- PCI Express Gen 5: The card is built with a PCI Express Gen 5 x16 interface (operating at x8), future-proofing the system and ensuring maximum data throughput for high-speed components.
- NVIDIA Studio Support: This card is fully compatible with NVIDIA Studio drivers, which optimize and accelerate performance in professional creative applications like Adobe Premiere Pro, Blender, and DaVinci Resolve, leveraging the CUDA and Tensor Cores.

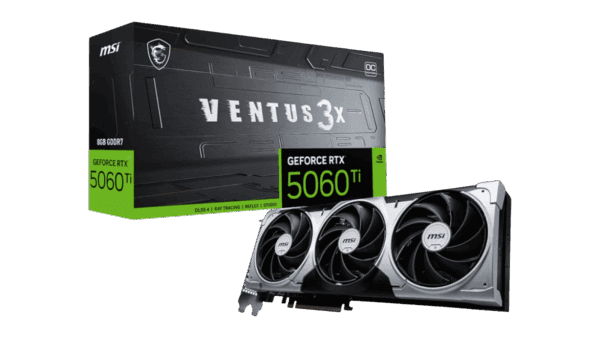

Cooling and Design (VENTUS 3X OC)
The VENTUS 3X OC is MSI’s larger, more robust cooling solution, designed for maximum thermal stability and quiet operation under extended load.
- Triple-Fan Thermal Design: Unlike the smaller 2X models, the VENTUS 3X uses three powerful fans across its extended length (30.6 cm). This distributes the cooling workload, allowing the fans to spin slower and quieter while maintaining optimal temperatures.
- High-Efficiency Heat Pipes: Precision-machined heat pipes make maximum contact with the GPU die and efficiently transfer thermal energy to the large heatsink fins.

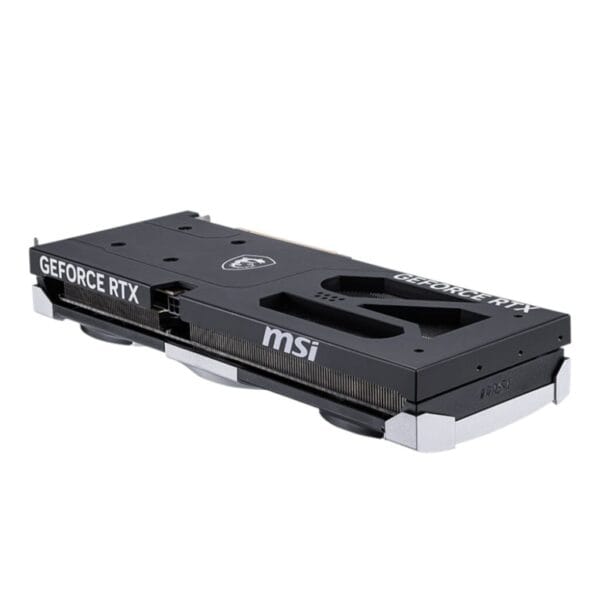

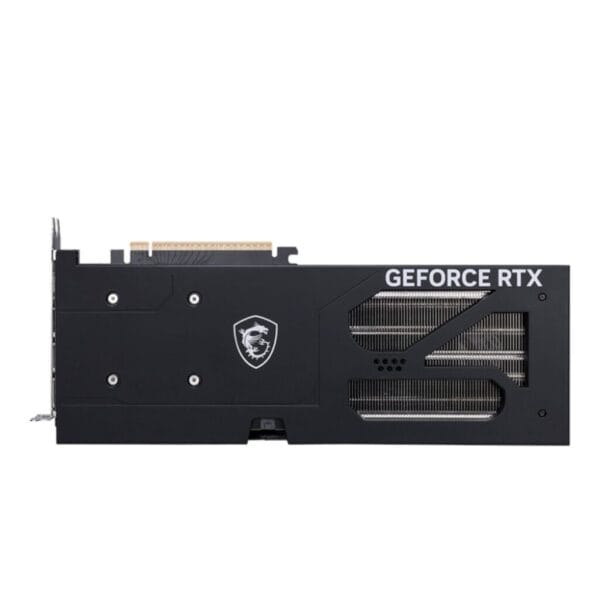

- Robust Aluminium Backplate: The backplate adds crucial structural rigidity to the long card, preventing sag. While the description is concise, backplates on modern cards often include passive heat dissipation features to help manage component heat on the rear of the PCB.
- Zero Frozr (Implied): The description notes the fan control system “activates only when needed,” indicating the fans completely stop during idle or light usage, ensuring whisper-quiet operation in non-gaming scenarios.
Gaming Performance
The RTX 5060 Ti, especially in the VENTUS 3X configuration, is positioned as a high-performance 1440p card, offering exceptional frame rates and visual quality.
| Resolution | Recommended Settings | Estimated Performance (DLSS 4 On) |
| 1080p (FHD) | Max/Ultra | Exceptional (160+ FPS). This card is significantly overkill for 1080p, guaranteeing competitive frame rates on monitors up to 240Hz, even with full Ray Tracing enabled. |
| 1440p (2K) | Max/High | Elite (80-120+ FPS). This is the sweet spot. The GDDR7 memory and 4608 CUDA Cores ensure high-refresh-rate gaming with maximum settings and minimal bottlenecks. DLSS 4 provides the necessary performance headroom for Ray Tracing. |
| 4K (UHD) | Medium/DLSS Balanced | Highly Capable (60+ FPS). The RTX 5060 Ti is a very strong entry point for 4K. With DLSS 4 enabled in Quality or Balanced mode, it can comfortably achieve smooth 60+ FPS in most AAA titles. |
Specifications
| Component | Detail |
| Graphics Processing Unit | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Ada Lovelace (5 nm) |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| CUDA Cores | 4608 Units |
| Boost Clock (Max) | 2617 MHz (MSI Center) |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Memory Bandwidth | 448 GB/s |
| Power Consumption | 180W |
| Power Connectors | 1x 8-pin |
| Recommended PSU | 600 W |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Dimensions | 30.6 x 12.1 x 4.4 cm (3-slot wide) |
| Warranty | 36 Months |
The MSI RTX 5060 Ti VENTUS 3X is an excellent choice for a future-proof 1440p gaming build. Given its triple-fan size (30.6 cm), have you checked that it fits comfortably in your PC case?
