Detailed Features and Technology Analysis
The RTX 5060 leverages the NVIDIA Blackwell architecture, bringing significant performance and efficiency improvements over the previous generation, particularly in memory bandwidth and AI acceleration (DLSS).
Key Technologies
- NVIDIA Blackwell Architecture: The foundation of this card, offering major gains in processing efficiency, faster Ray Tracing cores, and enhanced performance per watt compared to previous generations.
- Ultra-Fast GDDR7 Memory: This is a major upgrade. The inclusion of 8GB GDDR7 memory clocked at 28 Gbps provides massive memory bandwidth, which is crucial for handling high-resolution textures and complex data required by modern games and creative applications.
- DLSS 4: The new generation of Deep Learning Super Sampling uses advanced AI-driven techniques to render fewer pixels while delivering an image quality equal to or better than native resolution, dramatically boosting frame rates, especially when paired with Ray Tracing.
- PCI Express Gen 5: The card uses a PCI Express Gen 5 x16 interface (operating at x8), future-proofing the system and ensuring maximum data throughput for high-speed components, while remaining backward compatible with Gen 4.

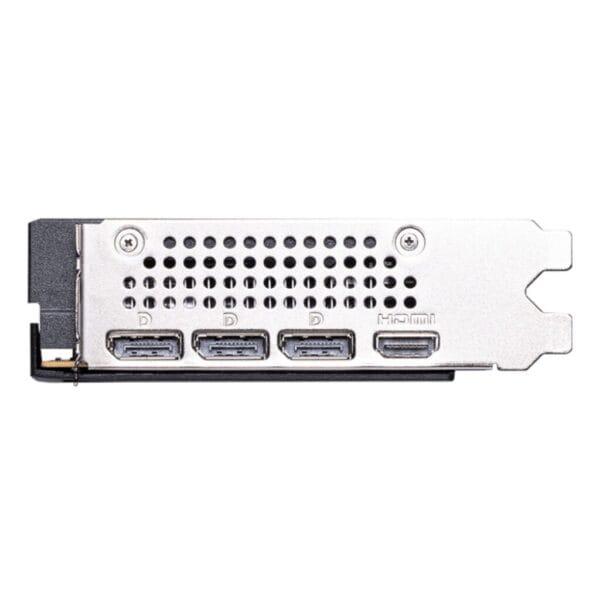

- Advanced Display Outputs: Featuring DisplayPort 2.1b and HDMI 2.1b, this card supports next-generation monitors with resolutions up to 8K at 120Hz or 4K at 480Hz, complete with support for G-SYNC® and HDR.
Cooling and Design (SHADOW 2X OC)
The MSI SHADOW 2X OC focuses on thermal efficiency and acoustics in a compact dual-fan form factor.

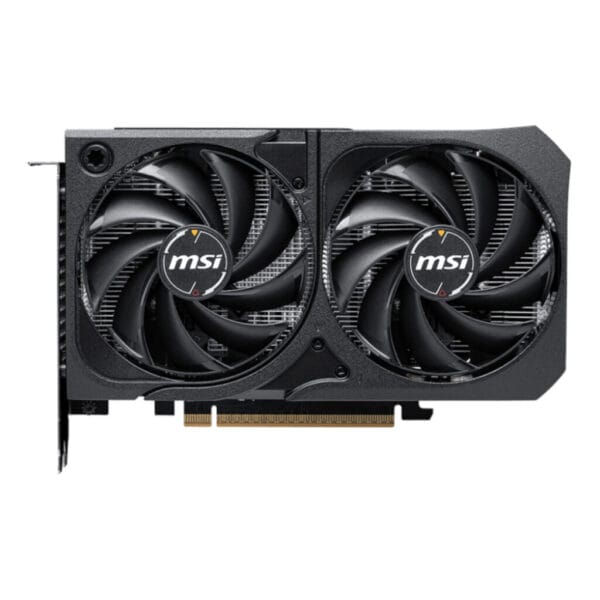

- TORX Fan 5.0: This cooling solution features fan blades linked by ring arcs and tilted at an aggressive 22° angle. This unique design stabilizes the airflow, minimizes turbulence, and achieves up to 23% better airflow than standard axial fans, ensuring superior cooling capacity.
- High-Efficiency Heat Pipes: Precision-engineered heat pipes maximize contact with the GPU and critical components, rapidly drawing heat away and distributing it evenly across the heatsink fins.

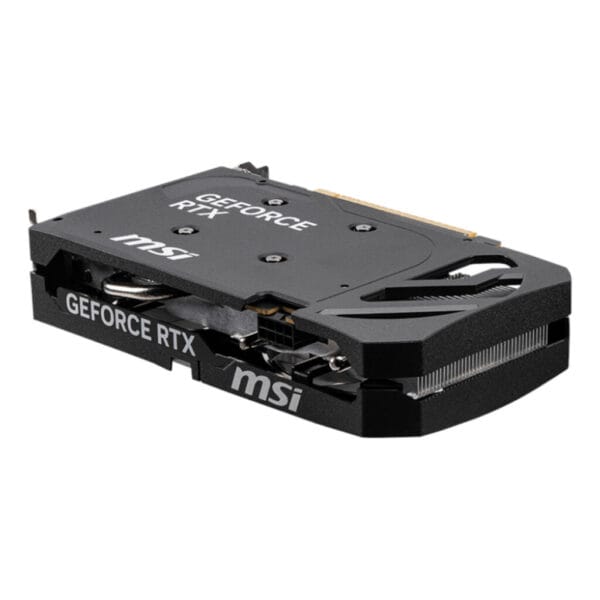

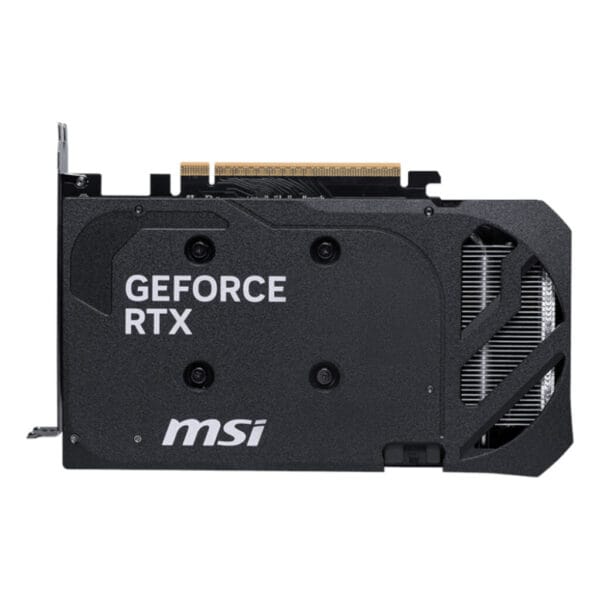

- Reinforcing Backplate: A rigid backplate not only adds structural integrity but features an airflow vent that allows exhaust heat to pass directly through the card and into the case’s airflow, preventing heat stagnation and enhancing overall cooling.
- Intelligent Fan Control: The fan system remains completely silent during idle or light usage, only engaging automatically when temperatures rise under heavy gaming load.
Gaming Performance
The RTX 5060 is perfectly situated for enthusiast 1080p and capable 1440p gaming, with the massive memory speed advantage of GDDR7 providing exceptional stability.
| Resolution | Recommended Settings | Estimated Performance (DLSS 4 On) |
| 1080p (FHD) | Max/Ultra | Outstanding (120+ FPS). The ideal resolution for this card. It easily handles all modern AAA titles at maximum settings, using DLSS 4 to push competitive eSports frame rates on high refresh rate monitors. |
| 1440p (2K) | High/Max | Excellent (70-90+ FPS). Highly capable at this resolution. The increased memory bandwidth from GDDR7 helps maintain smooth performance. Enabling DLSS 4 Quality mode provides a consistent and visually rich experience well above 60 FPS. |
| 4K (UHD) | Medium/DLSS Performance | Viable (40-60+ FPS). Possible for less demanding titles or when utilizing aggressive DLSS 4 Performance Mode with Frame Generation. This resolution pushes the limits of the 128-bit bus, but the 28 Gbps memory speed helps compensate. |
Specifications
| Component | Detail |
| Graphics Processing Unit | NVIDIA GeForce RTX 5060 |
| Architecture | NVIDIA Blackwell |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| CUDA Cores | 3840 Units |
| Boost Clock (Max) | 2535 MHz (MSI Center) |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Power Consumption | 145 W |
| Power Connectors | 1x 8-pin |
| Recommended PSU | 550 W |
| Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Maximum Digital Resolution | 7680 x 4320 (8K) |
| Dimensions | 19.7 x 12.0 x 4.0 cm |
| Warranty | 36 Months |
The MSI RTX 5060 is a significant upgrade, especially with the inclusion of 28 Gbps GDDR7 memory.
