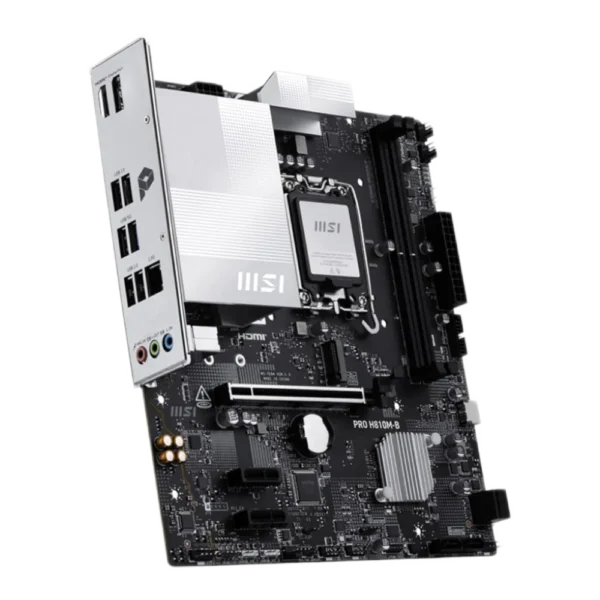

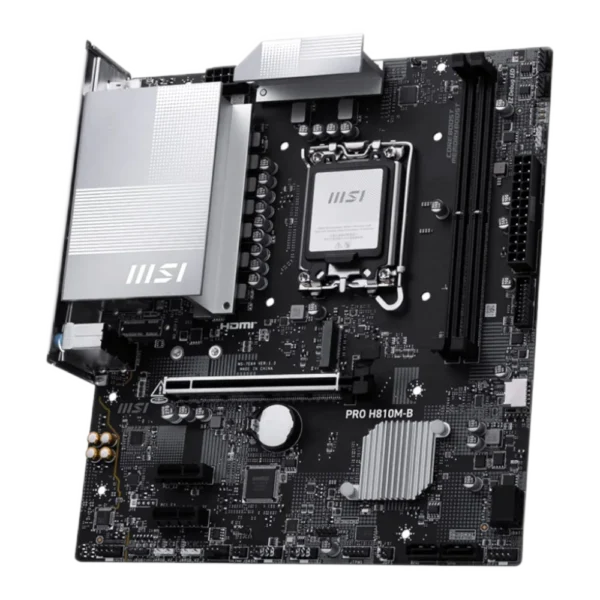

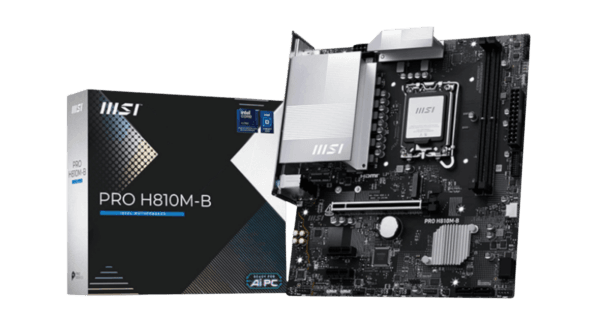

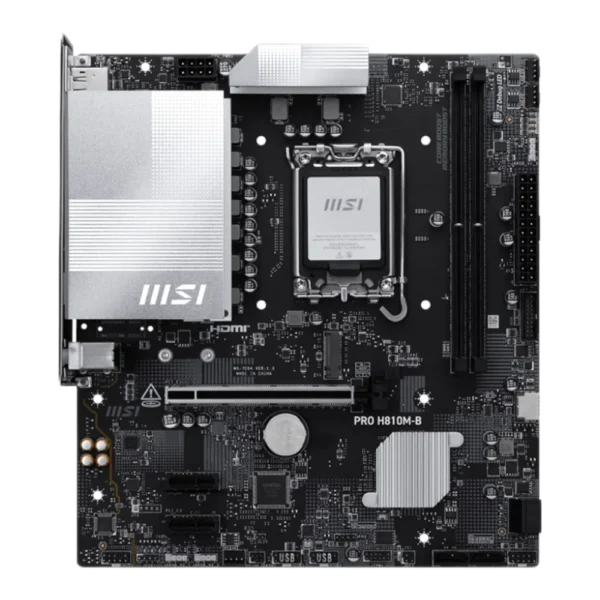

MSI PRO H810M-B Motherboard | Intel LGA 1851 DDR5 PCIe 5.0 mATX

The MSI PRO H810M-B is a robust and efficient Micro-ATX motherboard built for the next generation of Intel performance.

Supporting the LGA 1851 socket for Intel Core Ultra Series 2 processors, this board is engineered to handle demanding professional workloads and high-speed multitasking.

It features a cutting-edge PCIe 5.0 x16 slot, ensuring your system is ready for the fastest modern graphics cards without any bandwidth limitations.

MSI’s PRO series focuses on user-friendly DIY features, including the EZ PCIe Clip II and EZ M.2 Clip II, which make installing components faster and safer.

To ensure your system stays cool under pressure, Frozr AI Cooling automatically adjusts fan curves based on real-time temperatures.

With a sleek silver and black aesthetic, the H810M-B fits perfectly into any professional workstation or gaming setup, providing the reliability MSI is known for.

What It’s Good For or Fun Facts

• The New Era: This is one of the first boards to support the brand-new LGA 1851 socket, making it essential for users upgrading to the latest Intel Core Ultra chips.

• Content Creation Ready: With PCIe 5.0 and USB 10Gbps Type-C, moving large video files or running high-end GPUs is seamless.

• Clean Aesthetics: Its harmonious silver and black design makes it a “chameleon”—it looks great in both white-themed and black-themed builds.

• Fun Fact: The “EZ DIY” clips are designed specifically to stop people from accidentally scratching their motherboard with a screwdriver when trying to release a stuck graphics card!

Good to Knows

• Socket Specific: This board only fits the new Intel Core Ultra (Series 2) CPUs. It is not compatible with older 12th, 13th, or 14th Gen Intel processors.

• Memory Support: It supports DDR5 RAM up to 6400 MT/s. Note that it has 2 DIMM slots, supporting up to 128GB total.

• Networking Power: Features 2.5G LAN, which is significantly faster than standard office networking, perfect for NAS transfers or lag-free streaming.

• Future Proof Storage: Includes a Lightning Gen 4 x4 M.2 slot for ultra-fast NVMe SSD boot drives.

Product Information & Specifications

• Socket: Intel® LGA 1851

• Chipset: Intel® H810

• CPU Support: Intel® Core™ Ultra Processors (Series 2)

• Memory: 2x DDR5 (Max 128GB), up to 6400 MT/s (OC)

• Expansion Slots: 1x PCIe 5.0 x16 slot, 2x PCIe 4.0 x1 slots

• Storage: 1x M.2 Gen4 x4 slot, 4x SATA 6Gbps ports

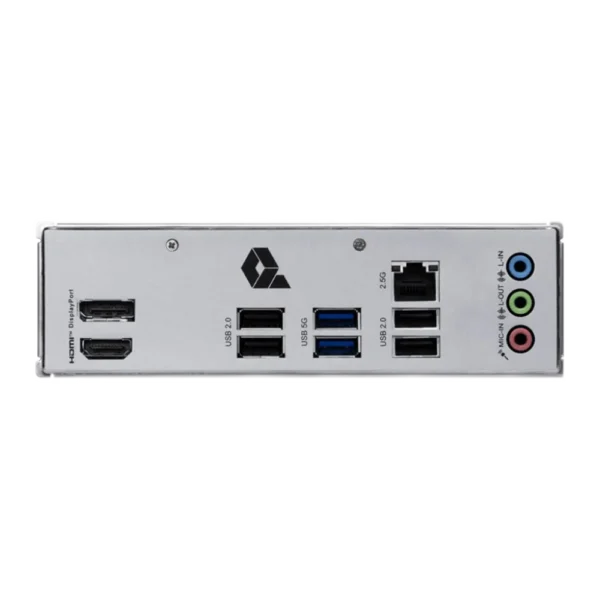

• Rear USB: 1x USB 10Gbps (Type-C), 4x USB 5Gbps (Type-A), 4x USB 2.0

• Networking: Realtek® 8125 2.5G LAN

• Audio: 8-Channel (7.1) HD Audio with Audio Boost

• Form Factor: mATX (220mm x 243.84mm)

• Warranty: 3-Year Limited Warranty
