Detailed Features and Performance Analysis
Overview and Specifications

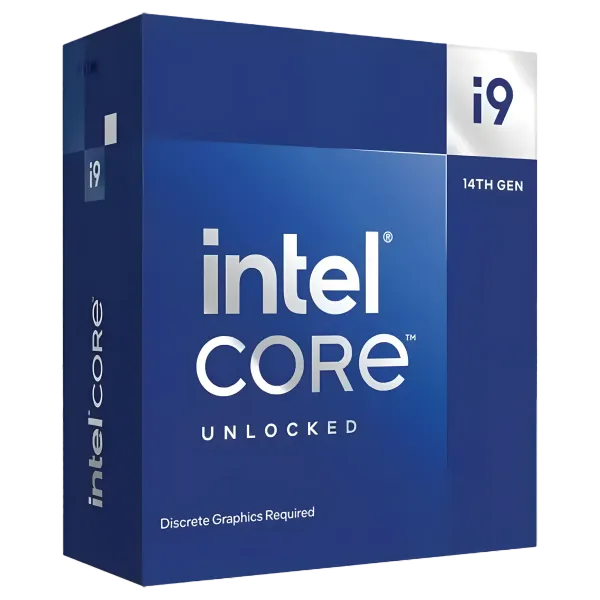

The Core i9-14900KF represents the peak of the Raptor Lake Refresh architecture, maximizing core count and clock speed simultaneously. It is the definitive choice for professionals and gamers who demand the absolute highest performance ceiling. The thermal design requires the high 125W base TDP to support this massive core and frequency configuration.
| Feature | Specification |
| CPU Cores / Threads | 24 Cores (8 P-Cores + 16 E-Cores) / 32 Threads |
| P-Core / E-Core Max Boost | P-Core: Up to 6.00 GHz / E-Core: Up to 4.40 GHz |
| Total Cache (L3 / L2) | 36MB L3 cache / 32MB L2 cache |
| Key Feature | Industry-Leading 6.0 GHz Clock Speed |
| Integrated Graphics (IGP) | None (F-series) |
| TDP (Base) | 125W |
| Memory Support | Dual Channel DDR5-6000 / DDR4-3200 |
| Socket | LGA 1700 |
Best Used For
- Extreme Gaming: Achieving the absolute maximum possible frame rates for competitive gaming, especially when paired with a top-tier dedicated GPU.
- Uncompromising Professional Workloads: Rendering, compiling, and simulating massive projects where every second saved is critical to productivity.
- Advanced Overclocking: The unlocked multiplier is mandatory for builders seeking to push the chip’s speeds to its thermal limit on high-end Z790 motherboards.
Performance: Gaming and Overclocking (Requires Dedicated GPU)
The 14900KF is designed for zero compromise in gaming, delivering elite performance stability and speed.
- World-Class Single-Core Speed: With P-cores boosting to an astonishing 6.0 GHz, this chip provides the fastest responsiveness and highest maximum frame rates available in consumer computing.
- Ultimate Thread Stability: The massive 16 E-Cores are dedicated to managing all background tasks, guaranteeing the game has dedicated, uninterrupted access to the 8 powerful P-Cores. This provides superior minimum frame rates and stability while streaming or recording.
- Cooling Requirement (Mandatory): Due to the extreme clock speeds and high power consumption (which can peak well above 250W under load), this CPU demands an elite cooling solution. Since it is sold as a “Box CPU with no fan,” a top-end 360mm AIO liquid cooler or a custom liquid loop is necessary to maintain maximum turbo speeds.
- Mandatory GPU: This ‘F’ series chip requires a high-end dedicated graphics card for the system to display an image.
Performance: Workloads and Creation
The huge core and thread count, coupled with the massive cache, makes this processor the ultimate tool for multi-threaded, professional work.
- 32-Thread Power: The highest thread count on the market provides exceptional parallel processing capability, dramatically reducing the time needed for rendering, compiling, and complex data analysis in all professional software suites.
- 36MB L3 Cache: The significantly expanded cache size improves data throughput, benefiting memory-intensive applications that handle massive data sets, complex simulations, and large-scale software development projects.
- Future-Ready Platform: Support for DDR5-6000 memory and PCIe 5.0 ensures the system’s platform is built on the fastest available standards, optimizing communication with top-tier graphics cards and NVMe storage.
