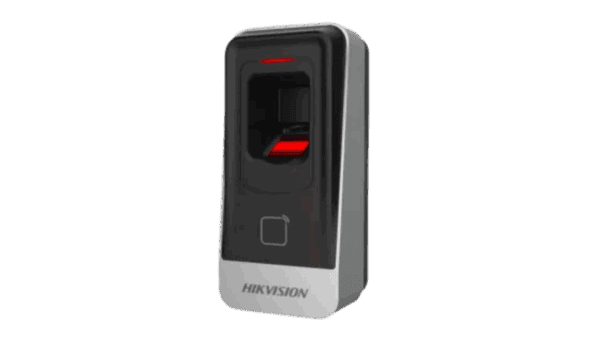

Hikvision DS-K1201AMF IP65 Fingerprint & Mifare Card Reader (RS-485/Wiegand)

Robust, Two-Factor Security for Any Environment

The Hikvision DS-K1201AMF is the professional’s choice for a reliable, high-security access control reader. It combines two forms of authentication (biometric fingerprint and encrypted card) into a single, durable unit. Its IP65 weatherproof rating means it’s built to be installed in tough outdoor environments, from rain-swept gates to dusty warehouse doors.

Why Choose Multi-Factor?

This reader gives you the ultimate flexibility and security:

• Fingerprint Only: Fast, convenient access for trusted staff.
• Card Only: Simple, easy-to-manage access using secure Mifare cards.
• Fingerprint + Card: For high-security areas (like server rooms or stock rooms), you can require both a fingerprint and a card for access.

It communicates via the secure RS-485 protocol or standard Wiegand, making it a flexible component for any new or existing Hikvision access control system.

How It Works

IMPORTANT: This is a Reader, Not a Controller.

This device is a secure reader that must be connected to a central controller (the “brain”) to function.

1. Professional Installation: The DS-K1201AMF is professionally installed (by Compufi) at the door.
2. Controller Connection: It is wired via RS-485 or Wiegand to a separate Access Control Panel (e.g., a Hikvision DS-K2600 series, sold separately). This panel stores all user data and access rules.
3. User Enrollment: User fingerprints and Mifare cards are enrolled at a central PC using a USB enrolment station (like the DS-K1F800-F for fingerprints or DS-K1F100-D8E for cards).
4. Access Granted: A user presents their fingerprint or card. The reader securely sends the data to the control panel. The panel verifies the user and sends a signal to your electric lock to open the door.

What It’s Good For

• High-Security Doors: Ideal for server rooms, IT closets, or stock rooms using “Card + Fingerprint” mode.
• Outdoor Gates & Entrances: The IP65 rating makes it perfect for outdoor pedestrian gates and main building entrances.
• Offices & SMBs: A fast, reliable biometric and card solution for staff access.
• Time & Attendance: Can be used as a clock-in/clock-out terminal when integrated with iVMS-4200 or HikCentral software.

Good to Knows (Please Read!)

• CONTROLLER REQUIRED: This is a Wiegand/RS-485 reader, not an all-in-one controller. It WILL NOT work on its own. It requires a separate access control panel (sold separately) to function.
• PROFESSIONAL INSTALLATION: This is a B2B component and requires wiring and setup by a qualified technician.
• POWER SUPPLY: Requires a 12V DC power supply, which is not included.
• CARD TYPE: This is a Mifare (13.56 MHz) reader. It is NOT compatible with older 125KHz (Prox/EM) cards.
• FINGERPRINT ENROLLMENT: To add fingerprints, you must use a separate USB Fingerprint Enroller (like the DS-K1F800-F, sold separately) connected to your management PC.

Product Information & Specifications
