Memory Speed
DDR4 3200MHz+
Unleash Next-Level Gaming and Computing Performance
Premium 16+1 Power System delivers rock-solid stability and unprecedented performance for the latest Intel 5000-series processors. Engineered with cutting-edge PCIe 5.0 support, this motherboard pushes the boundaries of data transfer speeds, ensuring lightning-fast gaming and content creation workflows.
Next Generation Connectivity and Speed
Experience the future of computing with PCIe 5.0 x16 for your GPU and PCIe 5.0 x4 for M.2 NVMe SSDs. The advanced DDR4 memory architecture supports speeds up to 3200MHz, ensuring your system runs smoother and faster than ever before.
What It’s Good For
- Professional Gamers: Push your gaming setup to the max with ultra-fast response times and high frame rates.
- Content Creators: Stream, edit, and render with the speed and reliability you need for professional-grade work.
CompuFi’s Expert Recommendation
PLEASE READ: How to Unlock This Product’s TRUE Power
For optimal performance, pair this motherboard with a high-end Intel 5000-series CPU and premium DDR4 memory. Upgrade to a PCIe 5.0 compatible GPU and install NVMe SSDs for maximum speed gains. For ultimate customization, explore the BIOS settings for advanced overclocking options.
Good to Knows
- BIOS Updates: Regular firmware updates are crucial for full compatibility and performance potential.
- WARRANTY: 3 Year Local Warranty
Detailed Technical Specifications

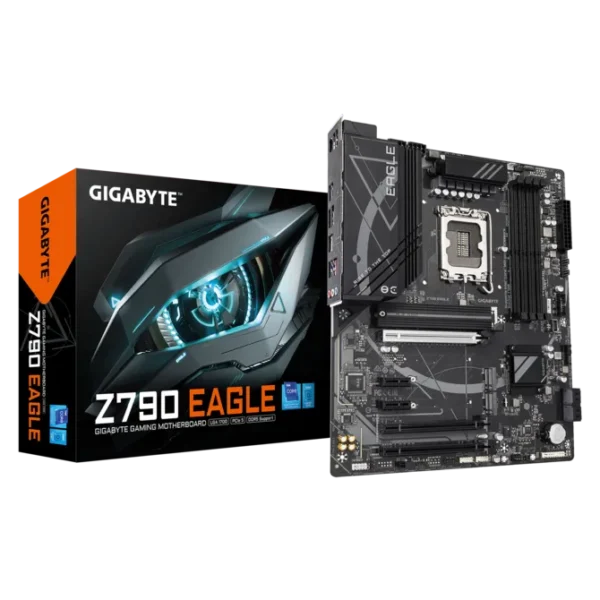

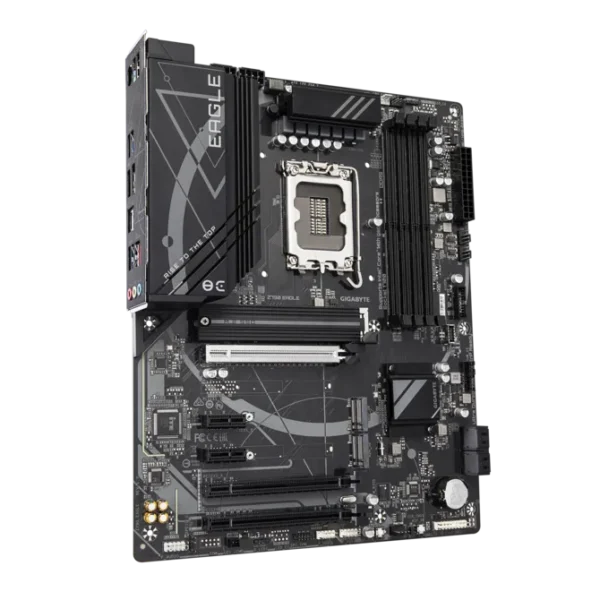

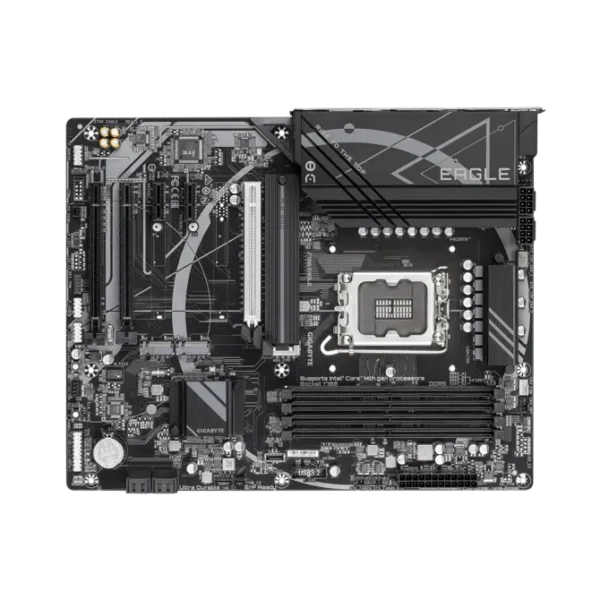

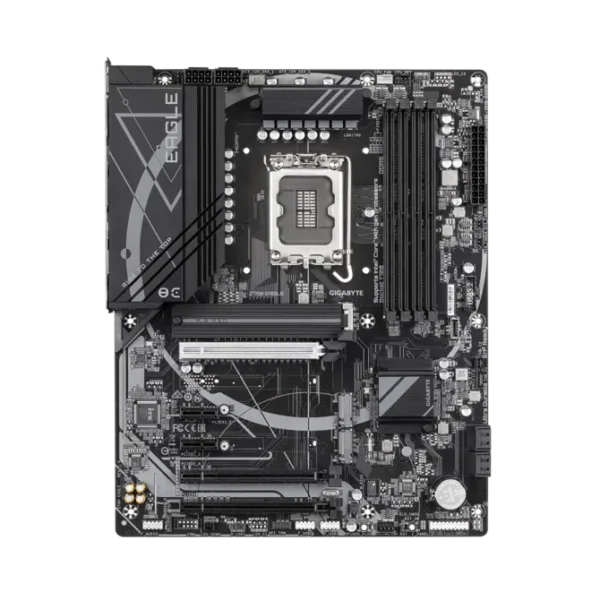

Intel® Z790 Express Chipset • ATX Form Factor
CPU & Chipset
- Socket: LGA1700 (14th, 13th, & 12th Gen Intel® Core™, Pentium® Gold and Celeron®)
- L3 Cache: Varies with CPU model
- Chipset: Intel® Z790 Express
Memory Architecture (DDR5)
- Capacity: 4 x DDR5 DIMM sockets (Up to 256 GB / 64 GB per module)
- High-Speed Support: Up to 7600(O.C.) MT/s for 14th/13th Gen i9/i7
- Standard Support: 4800/4400 MT/s for i5/i3 and 12th Gen
- Features: Dual Channel, ECC Un-buffered (non-ECC mode), XMP Profile Support
Multimedia (Audio & Graphics)
- HDMI: 1 x HDMI 2.1 (4096×2160@60 Hz) / HDCP 2.3 Support
- DisplayPort: 1 x DisplayPort 1.2 (4096×2304@60 Hz)
- Audio CODEC: Realtek® Audio High Definition (2/4/5.1/7.1-channel)
- Audio Extras: Support for S/PDIF Out & Software-based Jack Re-tasking
Expansion & Storage
- Main Slot: 1 x PCIe 5.0 x16 (running at x16)
- Expansion: 1 x PCIe 4.0 x16 (at x4), 1 x PCIe 3.0 x16 (at x1), 2 x PCIe 3.0 x1
- M.2 Storage: 3 x M.2 Connectors (Socket 3, M key, PCIe 4.0 x4/x2)
- SATA: 4 x SATA 6Gb/s Connectors
- RAID: NVMe & SATA support for RAID 0, 1, 5, 10

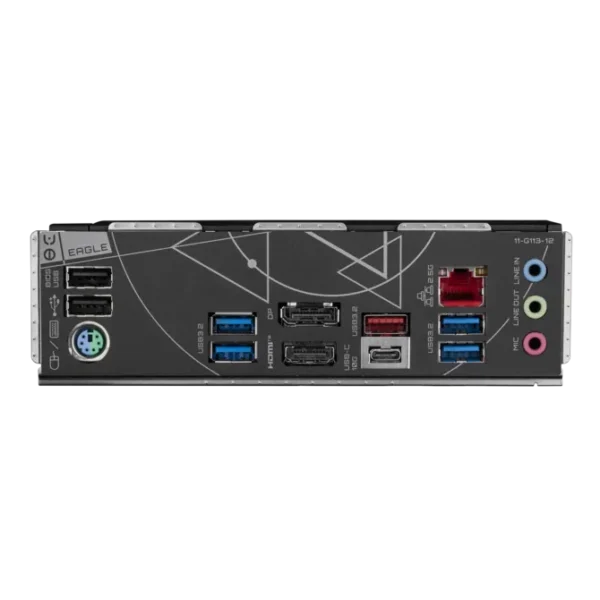

Network & I/O
- LAN: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
- USB (Rear): 1 x Type-C® (3.2 Gen 2), 1 x Type-A (3.2 Gen 2), 4 x 3.2 Gen 1, 2 x 2.0/1.1
- USB (Internal): 1 x Type-C® (3.2 Gen 1), 1 x 3.2 Gen 1, 4 x USB 2.0/1.1 headers
- Headers: 2 x Thunderbolt™ add-in card, 2 x Addressable LED, 1 x TPM
Unique Features & BIOS
- BIOS: 256 Mbit flash, AMI UEFI BIOS (PnP 1.0a, DMI 2.7, ACPI 5.0)
- Tools: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
- Hardware Monitor: Voltage, Temp, Fan Speed, Water Cooling Flow Rate
- Software: Norton® Internet Security (OEM), LAN Bandwidth Management
Windows 11 & 10 (64-bit) Supported
Form Factor: ATX (30.5cm x 24.4cm)
